3.2 inch IPS TFT LCD Display ILI9481 480X320 36 Pins for Arduino Mega2560

China

Directly attached on Arduino mega and Due(Without any shield)

Rs. 1,200
B320,IMP10,Th5,KRT,N47
In stock
+

Description

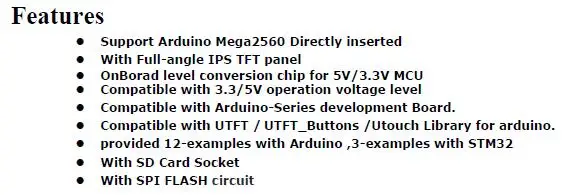

This 262K color 320 x 480 resolutions LCD module uses a thin-film-transistor liquid crystal display (TFT LCD) to improve image qualities. With controller HX8357B included in the screen, it supports 16-wires DataBus Interface. This module also includes 5V-3.3V power conversion circuit and a level conversion circuit. 100% compatible with Mega2560, it can be directly inserted into the Mega 2560 Board. Additionally, it comes with SD card socket and SPI flash circuit. Definitely a powerful module for your projects!

Specifications:

  1. Display Type: 3.2 inch TFT LCD
  2. Glass Type: TFT IPS(Full-Angle)
  3. Display Resolution: 480 X 320 Pixels
  4. Back light: 6 chip HighLight white LEDs
  5. Control IC: HX8357B
  6. Interface: 16Bit Parallel Interface
  7. PCB Module size: 89.92mm X 54.25mm
  8. Active Area(WxH): 67.68mm X 45.12mm
  9. Power Consumption: 80 – 110(mA)
  10. Power: 5V/3.3V
  11. Touch Function: none
  12. Module Interface: 36Pin (Compatible with Arduino Mega2560)

Package includes:

  • 1 x 3.2 Inch 320 X 480 Ultra HD TFT LCD Display Module for Arduino Mega2560 Board

QQ20180720185501

QQ20180720184719

QQ20180720184725

QQ20180720184732

QQ20180720184845

3.2 inch TFT LCD screen module 3.2'' HD 320X480 For MEGA2560 R3 STM32 C51 Demo Board

Attachments

LCD Tutorial (3.2_inch_TFT_Display_480x320_for_Mega.pdf, 926 Kb) [Download]
