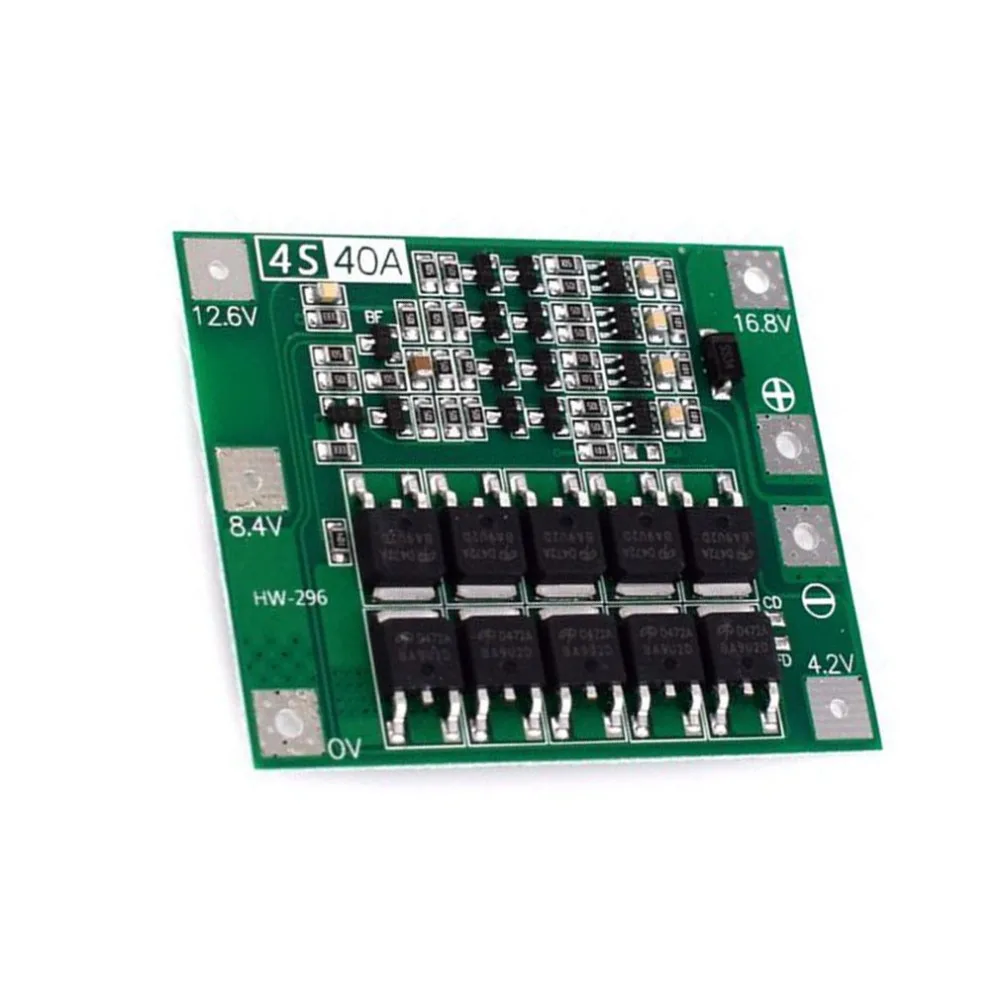

HW-296 4S 40A Enhance Li-ion Lithium Battery Protection Board 18650 Charger PCB BMS For Drill Motor 14.8V 16.8V Enhance DIY Electronic Module in Pakistan

China
Price=400
B844,dell
In stock
+
Add to wish list

HW-296 3S/4S 40A 60A Li-ion Lithium Battery Charger Protection Board 18650 BMS For Drill Motor 11.1V 12.6V/14.8V 16.8V Enhance/Balance.

  • High charge and discharge current; Compact size and lightweight.
  • High-accuracy voltage detection circuit, fine workmanship and durable.
  • Over-discharge protection, overcurrent protection, overcharge protection.
  • MOS transistor can control the battery charge and discharge, low standby current consumption.


Specifications Of HW-296 4S 40A Enhance Li-ion Lithium Battery Protection Board 18650:

  • Product model: HW-296
  • Charging voltage: DC 16.8-17.8V
  • Continuous discharge current: 40A maximum (if the heat dissipation environment is not good, please reduce the load current)
  • Continuous charging current: up to 20A
  • Product size: 45*60*4mm
  • Applicable choice: Suitable for lithium battery with nominal voltage of 3.7V and full charge of 4.2V
  • (including 18650, 26650, polymer lithium battery), can be drilled below 170W


Package Included In Specifications Of HW-296 4S 40A Enhance Li-ion Lithium Battery Protection Board 18650::
1*Lithium battery protection board
