6Nm Torque Nema 34 75mm Stepper Motor

Advance Payment Only

List price: Rs. 10,000
Rs. 9,000
You save: Rs. 1,000 (10%)
In stock

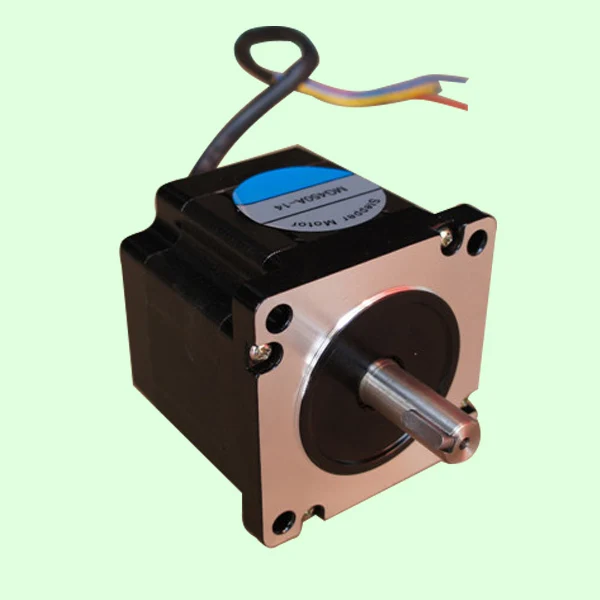

Nema 34 75mm Stepper Motor is a high torque hybrid bipolar stepping motor with a 3.4×3.4 inch faceplate. Nema 34 75mm Stepper Motor, Hybrid stepper has the combination of the features of the Variable Reluctance Stepper Motor and Permanent Magnet Stepper Motor. This motor has a step angle of 1.8 deg., this means that it has 200 steps per revolution and for every step, it will cover 1.8°.  This NEMA 34 is a 2-Phase motor with 4 wires. Compatible controllers for this motor are CW230, CW250 and CW860.

Features of Nema 34 75mm Stepper Motor:

  1. High performance, low price
  2. Supply voltage from 35VDC
  3. Overvoltage, under voltage, overcorrect, phase short circuit protection
  4. Offline command input terminal
  5. Motor torque is related to speed, but not related with step/revolution
  6. High start speed
  7. High holding torque under high speed

Specifications of Nema 34 75mm Stepper Motor:

  1. Body Length: 75mm
  2. Shaft Length: 30mm
  3. Shaft Size: 10mm
  4. Ampere: 6amp
  5. Step Angle Accuracy: ±5%
  6. Resistance Accuracy: ±10%
  7. Inductance Accuracy: ±20%
  8. Temperature Rise: 80℃ Max
  9. Ambient Temperature: -20℃~+50℃
  10. Insulation Resistance: 100MΩMin.500VDC
  11. Dielectric Strength: 500VAC for one minute
  12. Shaft Radial Play: 0.02Max.(450g-load)
  13. Shaft Axial Play: 0.08Max.(450g-load)

stepper motor controller dmx / steeper motor

1.8 degree step angle 2.4NM CNC router stepper motor


  1. CNC mills & milling machines.
  2.  CNC lathes.
  3. Pick-n-place machines.
  4. Laser Engravers and Laser sCutters.
  5.  Vinyl Sign Cutters.
  6. CNC Plasma Cutters.
  7. CNC Foam Cutters.

Package Includes:

1 x Nema 34 75mm Stepper Motor
