D-SUB 15 Pin Female Right Angle PCB Mounting VGA Connector in Pakistan

Rs. 30
B631
In stock
+

The D-subminiature or D-sub is a common type of electrical connector. They are named for their characteristic D-shaped metal shield. When they were introduced, D-subs were among the smallest connectors used on computer systems.

Specifications:

  • Gender: Female
  • Pin Number: 15 pins
  • Row 3 rows
  • The orientation body: Right angle
  • Current Rate: 3 amps
  • Dielectric resistance voltage: ca 1000/60 seconds. RM
  • Insulation resistance: 1000 Megohms Min at 500VDC
  • Contact resistance: 25 Megohms max.
  • Insertion force: 340 grams maximum per contact pair
  • Withdrawal force: 21 Grams minimum per contact pair

Features:

  • Type: DB 15 Pin Female Plug; Connector(s) B: Solder Pin; Connector A: VGA/SVGA D-Sub Female
  • Connection Split/Duplication: None (1 : 1); Product Name: VGA Connector; Cable Length: Not Applicable

Package Include:

1XD-SUB 15 Pin Female Right Angle PCB Mounting VGA Connector

Image result for 15 pin d sub connector pinout

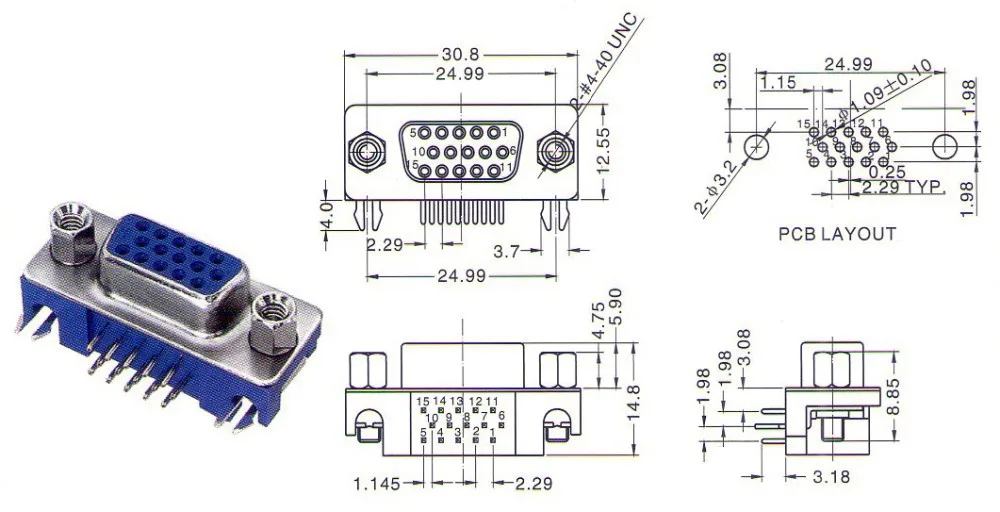

D-SUB-15FA-3.08
