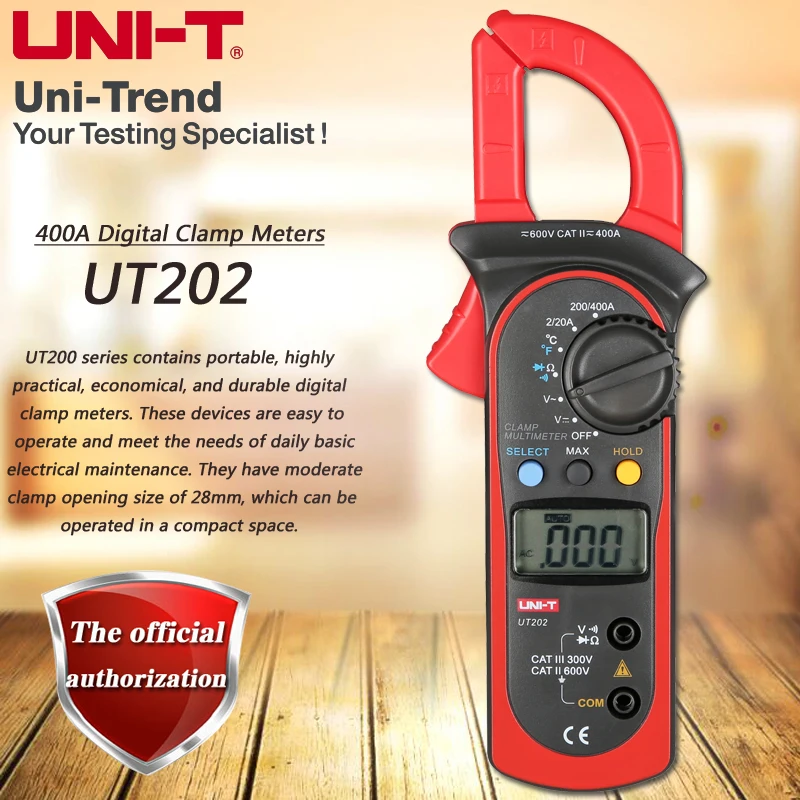

UNI T Digital Clamp Meter UT202

UT202 Has been discontenued.
Here is the latest model. Please click on the image to buy latest model.

Rs. 2,565
B635,TMD1,Th6,KRT138
In stock
+

Description

Digital clamp meter UNI-T UT202 is a reliable and low consumption AC clamp multimeter. Clamp tester UNI-T UT-202 measures AC and DC voltage, AC current, resistance and temperature, also performing diode check and continuity test. This best clamp meter has overload protection and also come with point contact temperature probe, perfect for working in HVAC. This tong tester is easy to use and lightweight as well.

Features Of UNI-T UT202 400-600A Digital Clamp Meter:

  • Measuring functions:
    • AC/DC voltage
    • AC current
    • Resistance
    • Temperature
    • Diode check
    • Continuity test
  • Auto-ranging
  • Data hold function
  • Sleep mode
  • Full icon display
  • Low battery display
  • Maximum value hold
  • 28 mm maximum jaw diameter
  • Measurement update speed 3 times/second
  • Compact and comfortable design
  • Compliance with safety requirements IEC61010, CAT II 600 V / CAT III 300 V

Specifications Of Auto-Range UNI-T UT202 Clamp Multimeter:

  1. AC Current (A): 2A/20A/200A/400A
  2. AC Current (A) Accuracy: ±(1.5%+5)
  3. AC Voltage (V): 2V/20V/200V/600V
  4. AC Voltage (V) Accuracy: ±(1.2%+5)
  5. DC Voltage (V): 200mV/2V/20V/200V/600V
  6. DC Voltage (V) Accuracy: ±(0.8%+1)
  7. Resistance (Ω): 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ
  8. Resistance (Ω) Accuracy: ±(1%+2)
  9. Temperature (°C): -40°C ~ 1000°C
  10. Temperature (°C) Accuracy: ±(1%+3)
  11. Temperature (°F): -40°F~1832°F
  12. Temperature (°F) Accuracy: ±(1%+6)
  13. Display Count: 2000
  14. Auto Range: Yes
  15. Jaw Capacity: 28mm
  16. Diode: Yes
  17. Auto Power Off: Yes
  18. Continuity Buzzer: Yes
  19. Low Battery Indication: Yes
  20. Data Hold: Yes
  21. MAX Mode: Yes
  22. Full Icon Display: Yes
  23. Input Impedance for DCV: Around 10MΩ
  24. Power: 1.5V Batteries(R03) ×2
  25. LCD Size: 35.6mm X 18 mm
  26. Product Color: Red and Grey
  27. Product Net Weight: 220g
  28. Product Size: 210mm X 75.6mm X30 mm

Package includes:

  • 1 x Clamp meter UNI-T UT202
  • 2 x Test leads
  • 1 x Point contact temperature probe
  • 1 x Battery
  • 1 x User manual

Best Online Shopping website forUNI T Digital Clamp Meter UT202 AC DC Amp Best Clamp Multimeter Mini Tong Tester in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.

UNI T UT202 400A Digital Clamp Meter Digital Hold Full Symbol ...
