UNI T Auto Range Digital Clamp Meter UT206

UNI-T
Rs. 5,265
TMD,Th,KRT
In stock
+

UNI-T UT206 is a low-power, stable, safe and reliable 4000-count AC digital clamp meter. The full range overload protection circuit and unique design make it a perfect choice. This smart clamp is an auto-range, diode, continuity buzzer, full icon display, jaw opening light and much more features that provide you long-lasting use of this device. This electrical clamp meter is now available in Pakistan UT206A is a professional 1000A AC digital clamp meter with 40mm jaw.

Features Of AC/DC Voltage AC Amp Ohm Calmp Tester Meter UNI-T UT-206:

  • Auto Ranging
  • Diode
  • Continuity Buzzer
  • Relative Mode
  • Data Hold
  • Display Backlight
  • Full Icon Display
  • Sleep Mode
  • Jaw Opening Light

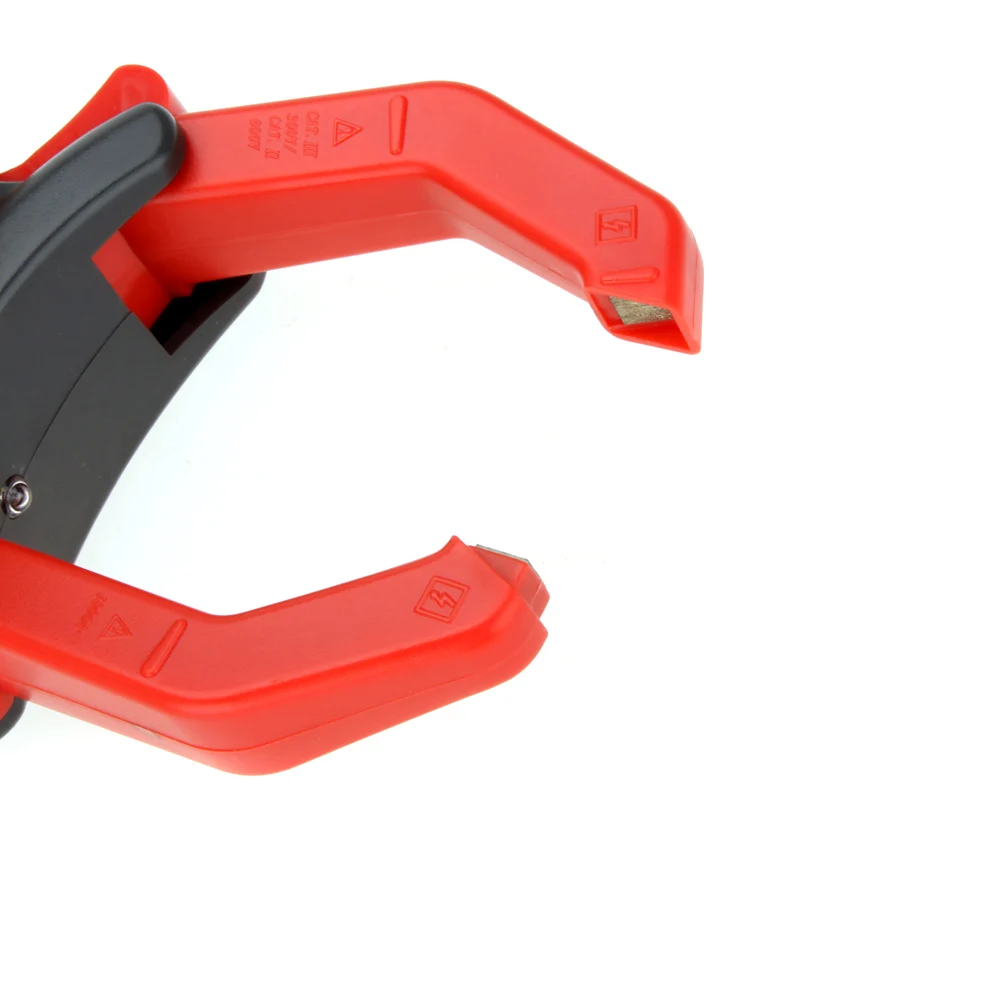

  • Max. Jaw Size: 40mm
  • Low Battery Display
  • Input Impedance for DC Voltage Measurement: Around 10MW
  • Max. Display: 3999

Specifications Of UNI-T UT206 Clamp Meter With Temperature LCD Backlight:

  1. DC voltage: 400mV / 4 V / 40 V / 400 V / 600 V
  2. DC voltage accuracy: ±(0.8%+1)
  3. AC voltage: 4 V / 40 V / 400 V / 600 V
  4. AC voltage accuracy: ±(1.2% + 5)
  5. Alternating current: 400A / 1000A
  6. Alternating current accuracy: ±(2% + 5)
  7. Resistance: 400Omega/ 4 KOmega/ 40 K /Omega/ 400 KOmega/ 4 MOmega/ 40 MOmega
  8. Resistance accuracy: ±(1% + 2)
  9. Capacitance: 40nF / 400nF / 4muF / 40MuF / 200MuF
  10. Capacitance accuracy: ±(3% + 5)
  11. Frequency: 10Hz ~ 10 MHz
  12. Frequency accuracy: ±(0.1% + 3)
  13. Temperature (C): - 40C ~ 1000C
  14. Temperature (C) accuracy: ±(1% + 3)
  15. Net weight of the item: 530g Product
  16. Size: 260x104x52mm
  17. Power: 9 V battery (6F22) (Not included in the package)
  18. LCD size: 52 * 27mm Product
  19. Colour: Red and grey

Package Includes:

  • 1 x UNI-T UT206 Digital Clamp Multimeter

  • 1 x Point Contact Temperature Probe

  • 2 x Test Clips

  • 2 x Test Leads

  • 1 x English Manual

  • 1 x Tool Box
