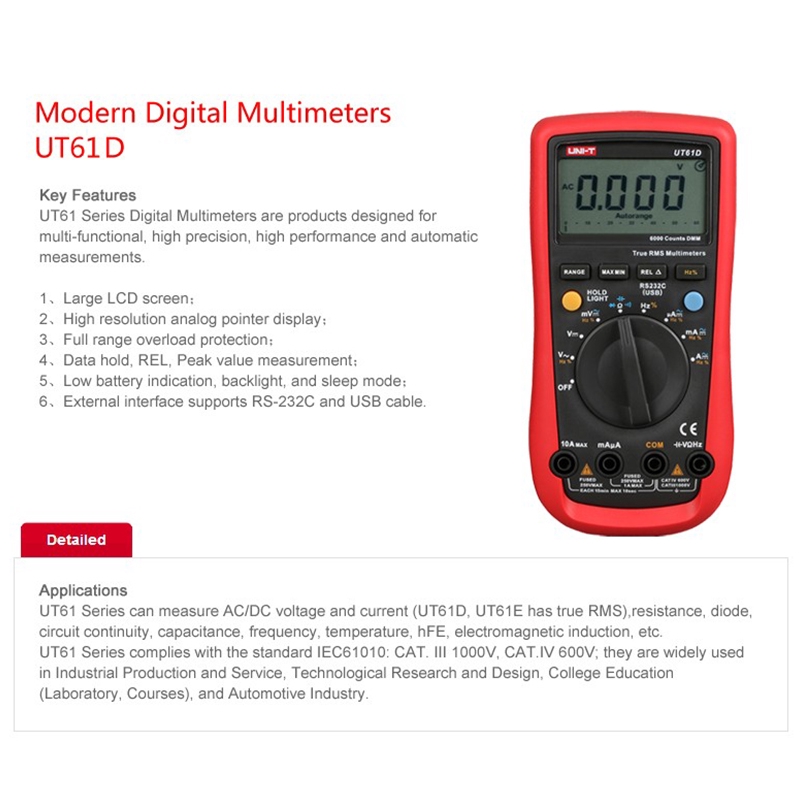

UNI T Modern Digital Multimeter UT61D

UNI-T UT61D digital multimeter is a high-quality True RMS multifunction meter. This UT-61D automotive multimeter is powered by a 9 V battery. UNI-T true RMS meter is characterized by multiple measurements (voltage, current, resistance, capacitance, frequency, temperature) and tests (diode, continuity) and auto power-off function, analog bar graph, data hold function. This professional workbench multimeter has a wrapped around red rubber holster for easy grip and to protect it from unexpected knocks and falls.

Features Of True RMS Multimeter UNI-T UT-61D:

• True RMS Digital Multimeter / 6000 Count Max Display / Auto-Manual Ranging
• Diode Testing; Continuity Buzzer; Relative Measurement; MAX/MIN; Data Hold / Auto Hold
• Data Logging & Recording using RS232 PC Interface Cable (included)
• Input Impedance / DC Voltage at 10M ohm; Overload Protection 1000Vdc / 750Vac
• Display Backlight; Low Battery Indicator; Built-In Back stand; Rubber Holster for Protection & Easy Grip

Specifications Of RMS Multimeter UT 61D:

1. Range selection: Auto / Manual
2. DC voltage: 60mV/600mV/6V/60V/600V/1000V
3. AC voltage: 60mV/600mV/6V/60V/600V/750V
4. DC current: 600uA/6000uA/60mA/600mA/6A/10A
5. AC current: 600uA/6000uA/60mA/600mA/6A/10A
6. Resistance: 400ohm/4Kohm/40Kohm/400Kohm/4Mohm/40Mohm
7. Capacitance: 40nF/400nF/4uF/40uF/400uF/4000uF
8. Frequency range: 10Hz~10MHz, 10Hz~220MHz, ±(0.1%+4)
9. Diode test: Yes
10. Continuity test: Yes
11. Data Hold: Press once to hold reading or press a few seconds for Auto hold function.
12. Safety Rating: CAT III 1000V | CAT IV 600V
13. Power: 9 V Battery (6F22)
14. Display LCD: 65mm x 43mm
15. Size: 180mm x 87mm x 47mm
16. Weight: 370 g

Package includes:

• 1 x UT61D True RMS Meter
• 2 x Test Probes
• 1 x Multi-Purpose Socket Adapter
• 1 x RS232C Interface Cable
• 1 x Operating Manual
• 1 x Computer Interface Software (CD-ROM)
