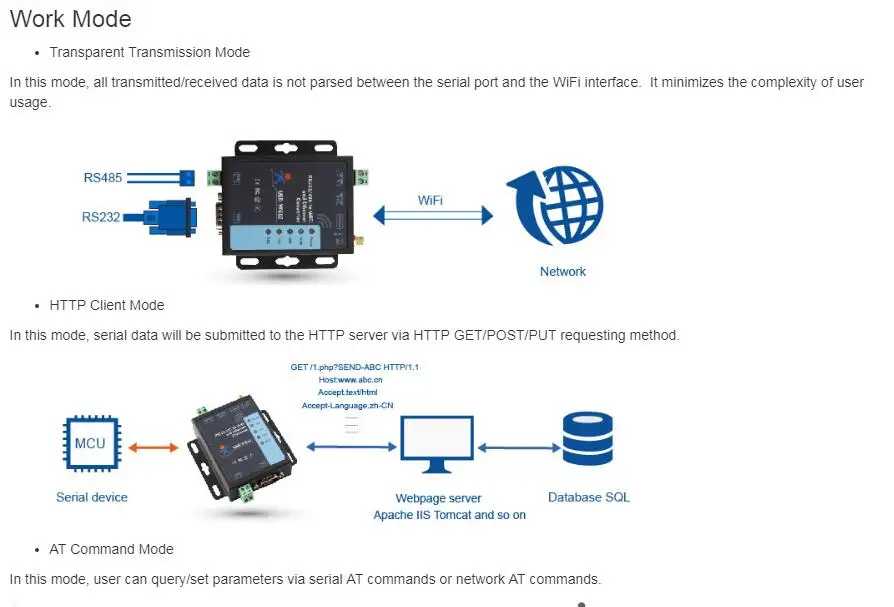

Serial To WiFi and Ethernet Converter USR-W610, which can realize bidirectional transparent transmission between RS232/RS485 and Ethernet/WiFi. Through simple configuration via Web Server or setup software can assign working details, realize serial data and TCP/IP data package transparent transmission by the converter.
Support WIFI@2.4GHz 802.11b/g/n wireless standards.

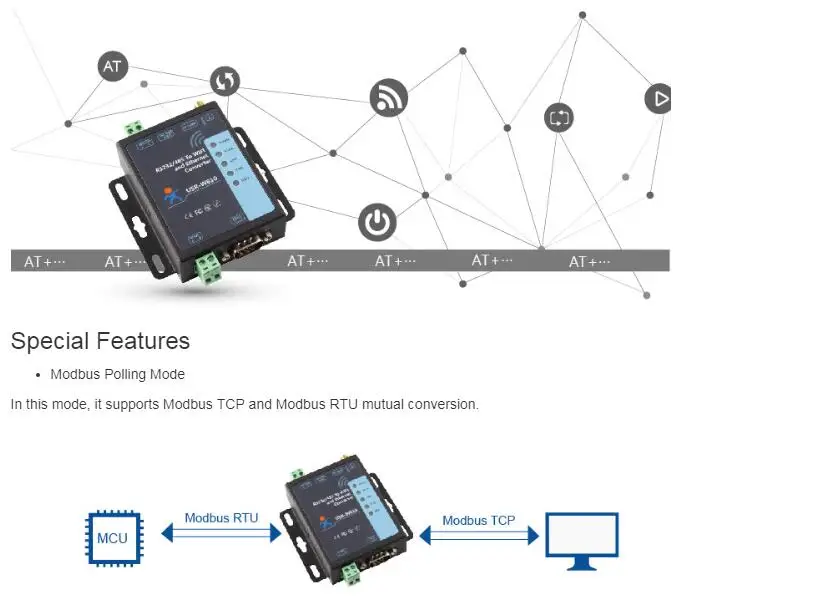

Support TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client mode.
Support AP, STA, AP+STA.
Support RS232 and RS485 serial ports.
Support electrostatic protection.
Support identity packet function.
Support heartbeat packet function.
Support Websocket function.

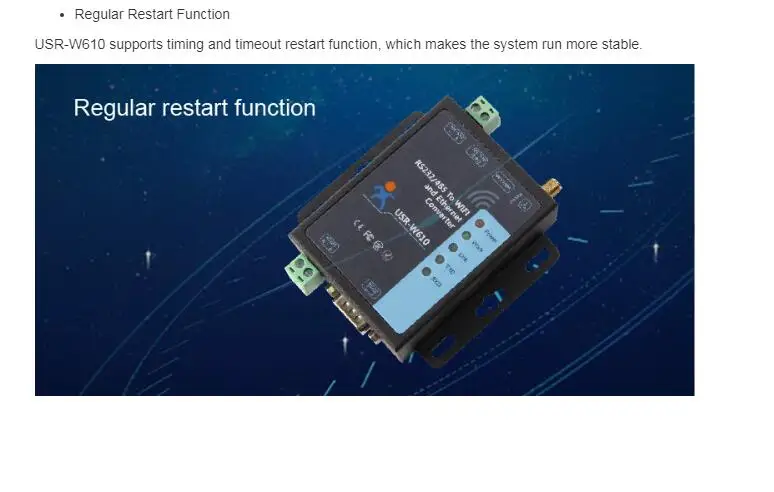

Support timeout reset function, timing reset function.
Support Web Server, setup software, serial/network AT command to configure module.
